Weber e-clutch
€57.50
Available, delivery time: 2-5 working days
Product information "Weber e-clutch "

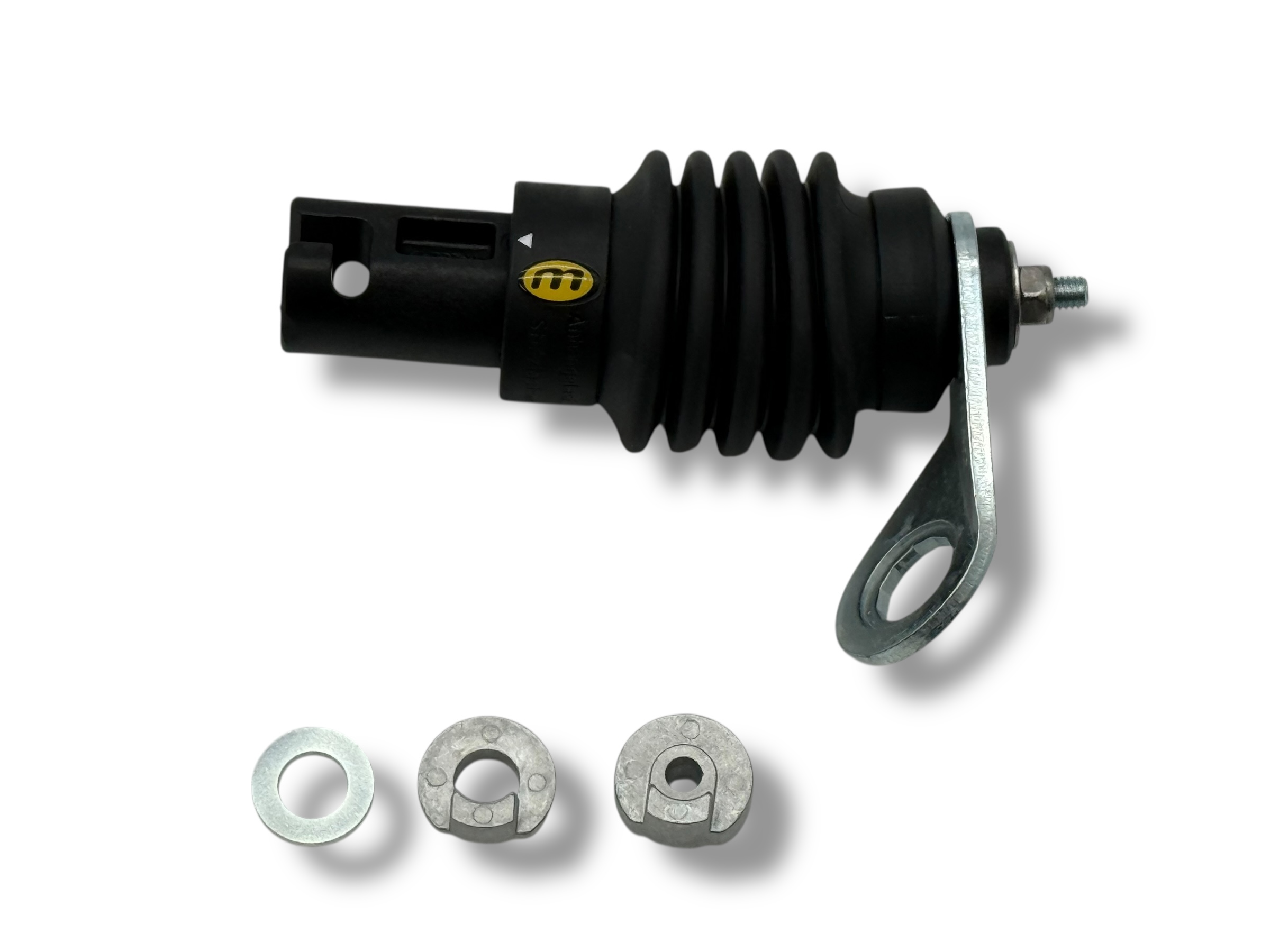

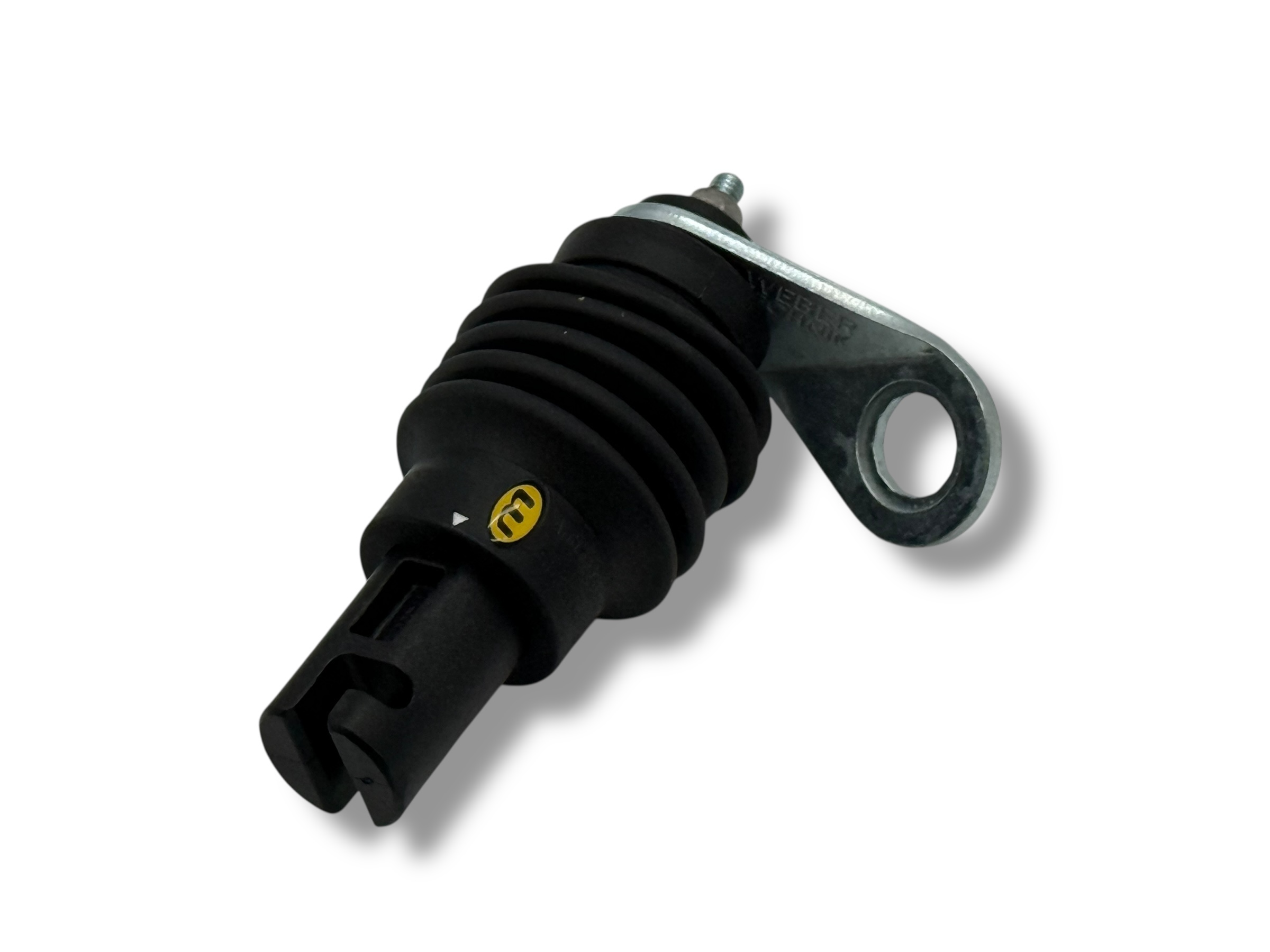

The Weber E hitch connects a bicycle and trailer using a bayonet coupling. Check the mounting requirements and exclusions for your bike.
Fit and requirements
- Suitable for all WEBER drawbars and connections.
- S-pedelecs & e-bikes over 25km/h
- Bikes with rear wheel motor or carbon frame
Features
- Internal rubber damping.
Technical details
| Permissible trailer weight | max. 80kg |
|---|---|
| Maximum drawbar load at the coupling point | max. 6.5kg |
| Weight | approx. 192g |
Installation
- General mounting position: Left, rear dropout
- Mounting for HASE bikes: on the special Hase trailer coupling
- Mounting on HP Veotechnik models: Delta TX and Scorpion fs 20 on the special HP trailer couplings, on all other HP models the coupling can be mounted directly without additional accessories.
- Mounting: Screw or quick-release axle (12 mm quick-release axle with accessories)
Notes
- A replacement axle is required for 12 mm thru axles.
Passendes Zubehör:
This extended Weber quick-release skewer is intended for axle attachment with thicker anti-rotation inserts. It is suitable for E and CE hitches; check the specified clamping width.Technical detailsUsefor axle mounting with thicker anti-twist locks (polygons)Total lengthapprox. 190mmClamp widthsuitable for 154-178 mmWhat's includedScope of delivery: 1 piece
