HP Velotechnik Scorpion fs 26,Pedelec, complete bike |Special Edition
Is this bike right for me?
Rider height: approx. 1.62–2.00 m
Seat height: 32 cm with ErgoMesh seat
Rider height is a guide. Leg length and seating position are also important.
Check the fit with advice & a test ride€10,919.00
Available to order – delivery time: 2-4 weeks
Product information "HP Velotechnik Scorpion fs 26,Pedelec, complete bike |Special Edition"
Scorpion fs 26 Special Edition Pedelec: electric trike with full suspension
The Scorpion fs 26 Special Edition combines a folding frame, full suspension and a complete equipment package for everyday use. Under-seat steering leaves the space in front of your body clear; a luggage rack, mudguards and lights are included. The Shimano STEPS EP801 Cargo drive provides pedal assistance up to 25 km/h, with a 630 Wh battery.
Equipment included in the price
- Frame and colour: folding, Pure orange matt (RAL 2004) / Black.
- Wheels: 20 inches at the front, 26 inches at the rear; Schwalbe Marathon Plus.
- Motor and battery: Shimano STEPS EP801 Cargo, 630 Wh; pedal assistance up to 25 km/h.
- Gearing: Shimano CUES Di2, electronic 10-speed derailleur gearing.
- Seat: ErgoMesh mesh seat with OrthoFlex padding; ErgoMesh XL available at no extra cost.
- Suspension: Suspended front wheels and rear air shock with lockout.
- Brakes: Shimano XT hydraulic disc brakes; additional rear-wheel parking brake.
- Lighting: B&M IQ-X at the front and 2C at the rear, powered by the electric drive system.
- Everyday equipment: Trikefender mudguards, fs 26 luggage rack, left B&M E mirror, HP Velotechnik safety flag and standard MTB pedals.
Technical specifications & sizing
| Seat height with ErgoMesh seat | 32 cm |
|---|---|
| Bottom bracket height | 40–45 cm |
| Front wheels | 20 inches (ETRTO / ISO 406) |
| Rear wheel | 26 inches (ETRTO / ISO 559) |
| Recommended rider height | approx. 1.62–2.00 m |
| Maximum payload | 140 kg; also observe the maximum permissible total weight |
| Maximum permissible total weight | 160 kg including the trike, rider and luggage |
| Width / wheelbase | 83 cm / 128 cm |
| Suspension travel front / rear | 6 cm / 8 cm |
| Overall length | 187–231 cm, depending on adjustment |
| Ground clearance | 12 cm, with static suspension sag |
| Turning circle | 5.51 m, outside to outside |
| Backrest angle with ErgoMesh seat | 41–49° |
| Frame material | Heat-treated 7005 T6 aluminium |
| Folded dimensions according to the manufacturer | 123 × 83 × 62 cm |
| Disassembled dimensions according to the manufacturer | 93 × 74 × 54 cm, with wheels also removed |
| Luggage rack load capacity | 25 kg; observe the total payload and maximum permissible total weight |
According to the manufacturer, the payload includes the pedelec system, rider, luggage and other loads. The actual weight of the trike reduces the remaining load capacity within the maximum permissible total weight. Rider height is a guide; leg length and seating position also matter. We are happy to check the correct adjustment with you during a consultation.
Check the fit more closely: Alongside rider height, the X-seam measurement helps assess suitable leg length. The HP Velotechnik measurement diagram explains how to take this measurement. The table provides guidance and does not replace individual fitting or a test ride. Download the X-seam measurement diagram and leg-length table (PDF).
Warranty & service
10-year manufacturer's warranty on the frame and swingarm bearings for original purchasers who register within four weeks and comply with the warranty conditions.
View warranty conditions
HP Velotechnik provides the original purchaser of a new trike with a ten-year warranty against defects in materials and workmanship on the frame and swingarm bearings, starting on the purchase date. This requires registration with HP Velotechnik within four weeks of purchase and an inspection record completed at purchase, with all prescribed inspections carried out professionally and documented.
The warranty conditions in the supplied operating manual apply. Exclusions include wear, corrosion, accident damage, and labour and transport costs. Your statutory warranty rights remain unaffected. Full warranty conditions and registration form from HP Velotechnik.
Folding & transport

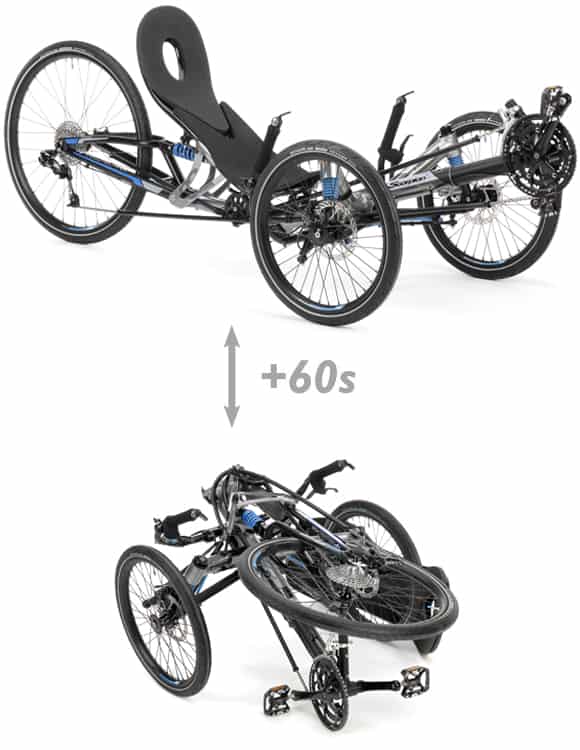

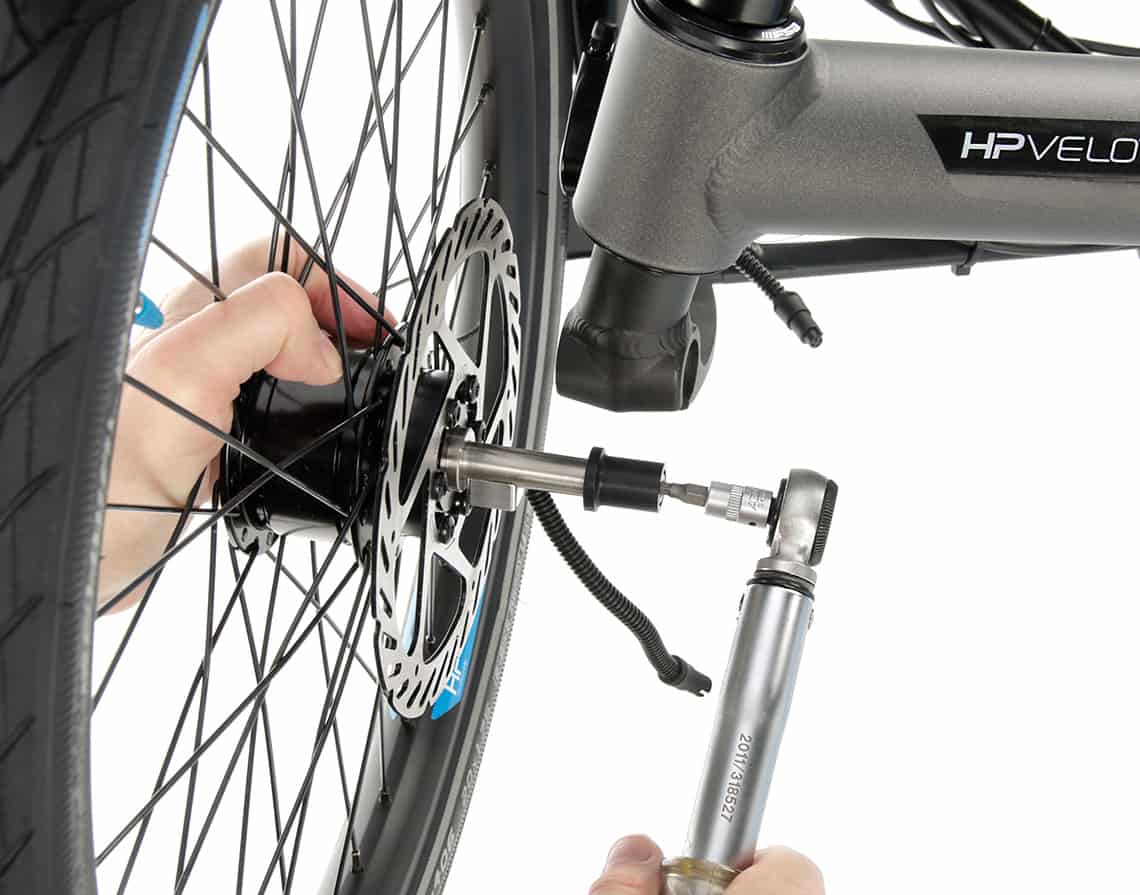

According to the manufacturer, the Scorpion fs 26 folds in around one minute without tools. The luggage rack and mudguards can remain fitted. The smaller disassembled dimensions require the wheels to be removed as well. Follow the operating manual when folding or disassembling the trike.
The transport dimensions are the manufacturer's figures for this model. The specific equipment and adjustments may affect the space required. Before transport, check the usable load area and opening of your vehicle; we are happy to advise you.
For everyday use and touring
The width and angle of the under-seat handlebars are adjustable. The included luggage rack carries up to 25 kg of luggage. Additional bag mounts are optional and are not included in the standard equipment described. Luggage counts towards the payload: the limits of 140 kg payload and 160 kg total weight must not be exceeded, including accessories.
Choose the right seat and accessories
We will discuss the right seat size with you. A headrest is not included in this standard equipment. ErgoMesh Premium seats, quick frame adjustment and other accessories are available at extra cost. For further requirements, we can advise you on an individual configuration.
Price and personal advice
The displayed price includes the Special Edition described here and €89 for transport from the manufacturer to us in Germany. Additional equipment may change the price. Images may show optional equipment.
Request advice and a test ride or ask about the equipment. The operating manual and seat information are available under ‘Manuals & Downloads’.
| German medical aid number available: | No |
|---|
